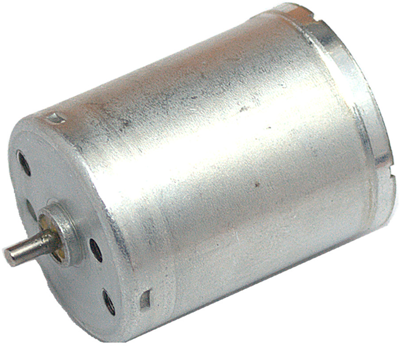

DC small motor, 6 V (DC), 350 mA, 5000 1/min, 860529
Order No.: 89B641
EAN: 4099891527167
MPN:
860529
RF-370CHV-22170
Unit Price (€ / pc.)
8.3062 € *
Available: 19 pcs.
Total Price:
8.31 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3062 €
10 pcs.
7.3066 €
50 pcs.
6.8187 €
150 pcs.
6.5093 €
500 pcs.
6.1761 €
*incl. VAT plus shipping costs
Subject to prior sale
DC-Kleinmotoren Typ Ekulit RF-370CHV-22170.
Vielseitig einsetzbarer und langlebiger Gleichstromkleinmotor; Nennspannung: 6,0 VDC, Leerlaufstrom: max. 55 mA, Haltestrom: max. 2500 mA, Bemessungsstrom: max. 350 mA, Nenndrehzahl: 5.000 rpm, Antriebsdrehzahl: 6.000 rpm, Kippmoment: 150 g/cm, Nenndrehmoment: 30 g/cm, Drehrichtung: CW, Temperaturbereich: 0 bis +30 °C.
Type: RF-370CHV-22170, DC-Kleinmotor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 6 V | |
| speed | 5000 1/min | |
| max. operating temperature | 30 °C | |
| min. operating temperature | 0 °C | |
| Version | DC small motor | |
| Rated current | 350 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85011093 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
