860501 | EKULIT

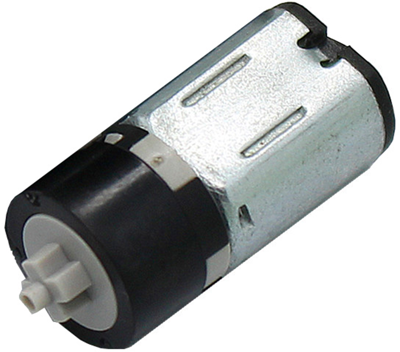

DC gear motor, 3 V (DC), 140 mA, 1:171, 860501
Order No.: 89B781
EAN: 4099891527181
MPN:
860501
10GP-M10-06230-15.1
Unit Price (€ / pc.)
9.401 € *
Standard delivery time from the manufacturer is: 1 Week
Getriebemotoren Typ Ekulit 10GP-M10-06230-15.1.
Kleiner, leichter und universell einsetzbarer Getriebemotor; Nennspannung: 3,0 VDC, Leerlaufstrom: max. 60 mA, Haltestrom: max. 250 mA, Bemessungsstrom: max. 140 mA, Leerlaufdrehzahl: 60 rpm, Nenndrehmoment: 300 g/cm, Drehrichtung: CW und CCW, Temperaturbereich: 0 bis +30 °C.
Type: 10GP-M10-06230-15.1, Getriebemotor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 3 V | |
| max. operating temperature | 30 °C | |
| Gear transmission | 1:171 | |
| min. operating temperature | 0 °C | |
| Version | DC gear motor | |
| Rated current | 140 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85011093 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
