LSM-S30K/P, 8 OHM | EKULIT
Miniature speaker, 8 Ω, 84 dB, 20 kHz, black, LSM-S30K/P, 8 OHM
Order No.: 38M394
EAN: 4099891542771
MPN:
LSM-S30K/P, 8 OHM
Unit Price (€ / pc.)
4.6291 € *
Available: 690 pcs.
Total Price:
4.63 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6291 €
10 pcs.
4.0698 €
100 pcs.
3.5700 €
250 pcs.
3.4391 €
1000 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

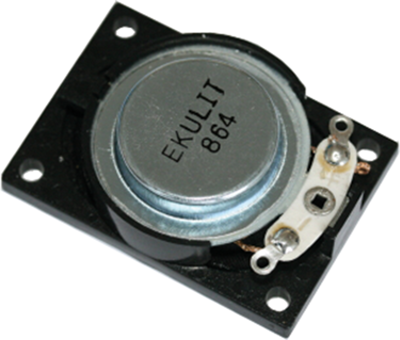

Miniature panel speakers, type EKULIT LSM-S30K/P.
Rated load: 2.0 W (max. 4.0 W). Sound pressure level: 84 dB ±3.0 dB. Impedance: 8.0 ohm ±15 %. Resonant frequency: 380 Hz ±20 %. Frequency response: Fo/20000 Hz. Operating temperatures: –20 to +60 °C. Outer dimensions: 40 x 28.5 x 13.4 mm. Hole pitch: 34 x 22.5 mm.
Type: LSM-S30K/P, speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 19.5 mm | |
| Colour | black | |
| Sound pressure level | 84 db | |
| Impedance | 8 Ω | |
| Max. transmission range | 20 kHz | |
| Resonance frequency | 380 Hz | |
| Version | miniature speaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85182900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
