LSM-65K/F | EKULIT
Miniature speaker, 8 Ω, 86 dB, 3.4 kHz, black, LSM-65K/F
Order No.: 38M390
EAN: 4099891542764
MPN:
LSM-65K/F
Unit Price (€ / pc.)
6.0809 € *
Available: 5 pcs.
Total Price:
6.08 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0809 €
10 pcs.
5.3431 €
100 pcs.
4.7005 €
250 pcs.
4.5101 €
1000 pcs.
4.2245 €
*incl. VAT plus shipping costs
Subject to prior sale

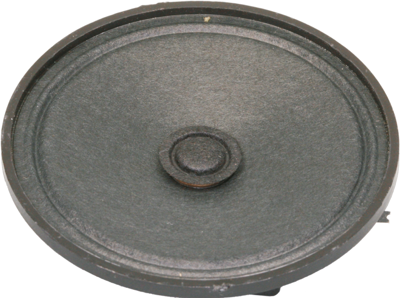

Miniature speakers, type EKULIT LSM-65K/F.
With plastic housing; Rated load capacity: 1.0 W. Sound pressure level: 86 ±3.0 dB. Impedance: 50 ±7.5 ohm. Resonant frequency: 360 ±72 Hz. Bandwidth: Fo/3400 Hz. Operating temperatures: –20 to +60 °C.
Type: LSM–65K/F, speakers
Technical specifications
| Filter | Property | Value |
|---|---|---|

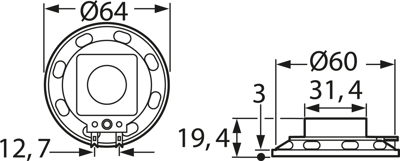

| Installation diameter | 60 mm | |
| Impedance | 8 Ω | |
| Resonance frequency | 360 Hz | |
| Sound pressure level | 86 db | |
| Colour | black | |
| Max. transmission range | 3.4 kHz | |
| Version | miniature speaker |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
