LSM-57M/F, 8 OHM | EKULIT
Miniature speaker, 8 Ω, 85 dB, 7 kHz, black, LSM-57M/F, 8 OHM
Order No.: 38M472
EAN: 4099891542825
MPN:
LSM-57M/F, 8 OHM
Unit Price (€ / pc.)
13.5303 € *
Available: 132 pcs.
Total Price:
13.53 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5303 €
10 pcs.
11.9119 €
50 pcs.
11.0908 €
150 pcs.
10.6148 €
500 pcs.
10.0674 €
*incl. VAT plus shipping costs
Subject to prior sale

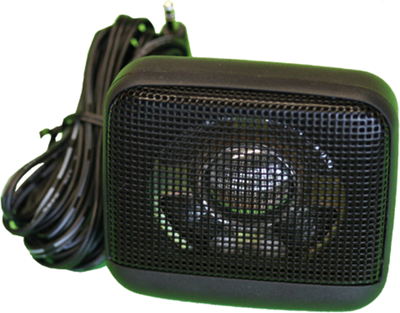

Miniature speakers, type EKULIT LSM-57M/F/G.
With adjustable bracket; Rated load: 3.0 W (max. 5.0 W). Sound pressure level: 85 db ±3.0 dB. Impedance: 8.0 ohm ±15 %. Resonant frequency: 420 Hz ±20 %. Frequency response: Fo/7000 Hz. Operating temperatures: –30 to +70 °C. Connection: 2.0 m cable with 3.5 mm phono jack. Outer dimensions (without bracket): 74.5 x 68.5 x 31 mm.
Type: LSM-57M/F/G, speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Sound pressure level | 85 db | |
| Impedance | 8 Ω | |
| Max. transmission range | 7 kHz | |
| Resonance frequency | 420 Hz | |
| Version | miniature speaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85182900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
