LSM-50A | EKULIT
Miniature speaker, 8 Ω, 84 dB, 4.5 kHz, black, LSM-50A
Order No.: 38M302
EAN: 4099891542610
MPN:
LSM-50A
Unit Price (€ / pc.)
3.3796 € *
Available: 27 pcs.
Total Price:
3.38 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3796 €
10 pcs.
2.9631 €
100 pcs.
2.6061 €
250 pcs.
2.5109 €
1000 pcs.
2.3443 €
*incl. VAT plus shipping costs
Subject to prior sale

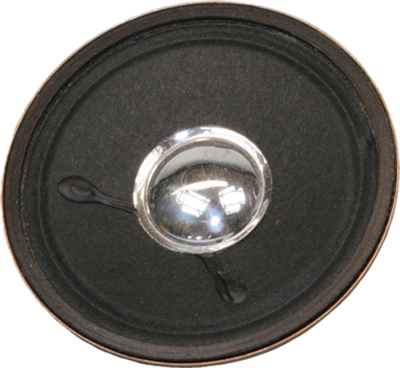

Miniature panel speakers, type EKULIT LSM-.
Round, proven design with an impedance of 8.0 ohm.
With diameter of 50 mm, type LSM-50 A.

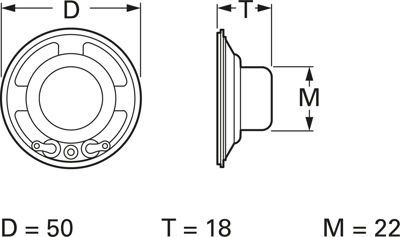

Rated load: 0.2 W. Maximum load: 0.4 W. Resonant frequency: 450 ±90 Hz. Bandwidth: Fo/4500 Hz. Sound pressure level: 84 ±3.0 dB. Operating temperatures: –20 to +60 °C. Dimensions: D 50, H 18, M 22 mm.
Type: LSM-50 A, miniature panel speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22 mm | |
| Impedance | 8 Ω | |
| Resonance frequency | 450 Hz | |
| Sound pressure level | 84 db | |
| Colour | black | |
| Max. transmission range | 4.5 kHz | |
| Version | miniature speaker |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
