LSM-104F/SQ | EKULIT
Miniature speaker, 8 Ω, 90 dB, 8 kHz, black, LSM-104F/SQ
Order No.: 38M296
EAN: 4099891542580
MPN:
LSM-104F/SQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.4748 € *
Standard delivery time from the manufacturer is: 1 Week

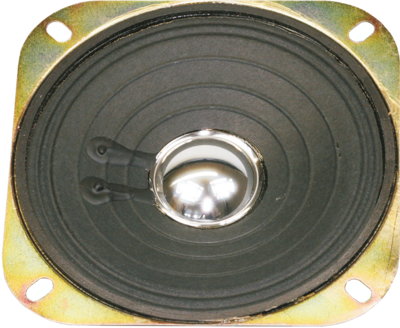

Miniature panel speakers, type EKULIT LSM-104F/SQ.

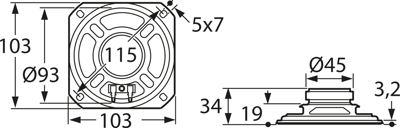

Square design with flange mounting; Rated load capacity: 3.0 W. Maximum load: 5.0 W. Sound pressure level: 90 ±3.0 dB. Impedance: 8.0 ±1.2 ohm. Resonant frequency: 150 ±30 Hz. Bandwidth: Fo/8000 Hz. Operating temperatures: –20 to +60 °C. Dimensions: L 103, W 103, H 34 mm.
Type: LSM–104F/SQ, speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | miniature speaker | |
| Impedance | 8 Ω | |
| Sound pressure level | 90 db | |
| Max. transmission range | 8 kHz | |
| Installation diameter | 45 mm | |
| Colour | black | |
| Resonance frequency | 150 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85182900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
