EPZ-20MS64 | EKULIT

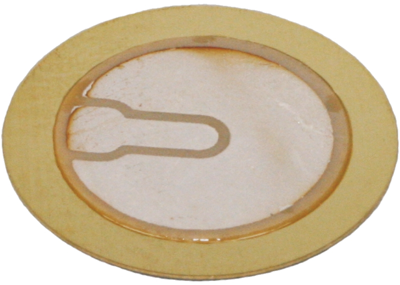

Piezo signal transmitter diaphragm, 400 Ω, 75 dB, yellow, EPZ-20MS64
Order No.: 36M605
EAN: 4099891542177
MPN:
EPZ-20MS64
Unit Price (€ / pc.)
0.5236 € *
Available: 34 pcs.
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5236 €
100 pcs.
0.4760 €
500 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale
Piezo buzzer diaphragms, type EKULIT EPZ.

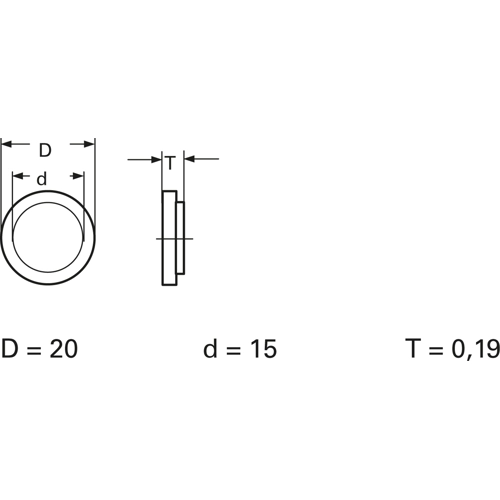

Standard version: brass/ceramic, available either with or without auxiliary anode. Dimensions: EPZ-20 = D 20, d 15, T 0.19 mm, EPZ-27 = D 27, d 20, T 0.51 mm, EPZ-35 = D 35, d 25, T 0.56 mm.
Without auxiliary anode, type EPZ.
Technical attributes (type, resonant frequency (±0.5 kHz), impedance, capacitance): EPZ–20, 6.4 kHz, 400 ohm, 35000 pF
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Resonance frequency | 6400 Hz | |
| Impedance | 400 Ω | |
| Version | piezo signal transmitter diaphragm | |
| Sound pressure level | 75 db |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85319000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
