AL-60P01 | EKULIT
Miniature speaker, 42 Ω, 80 dB, 30 mA, 300 Hz to 20 kHz, gray, AL-60P01
Order No.: 38M290
EAN: 4099891542535
MPN:
AL-60P01
Unit Price (€ / pc.)
1.5113 € *
Available: 48 pcs.
Total Price:
1.51 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5113 €
50 pcs.
1.3328 €
250 pcs.
1.1543 €
1000 pcs.
1.0115 €
2500 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale

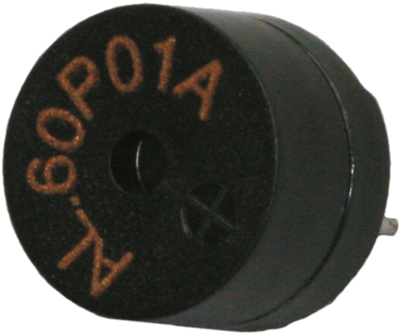

Miniature speakers, type EKULIT AL 60 P 01/A.
For PCB connection; Resonant frequency: 2048 Hz. Operating voltage: 1.0 to 2.0 V.
Technical attributes (type, impedance, sound pressure level, current consumption, coil resistance): AL–60P01, impedance 42 ohm, 85 dB, 30 mA, 16 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Resonance frequency | 2048 Hz | |
| Impedance | 42 Ω | |
| min. transmission range | 300 Hz | |
| Version | miniature speaker | |
| Sound pressure level | 80 db | |
| Rated current | 30 mA | |
| Max. transmission range | 20 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
