AL-30P | EKULIT
Miniature speaker, 8 Ω, 81 dB, 680 Hz to 6.5 kHz, black, AL-30P
Order No.: 38M294
EAN: 4099891542566
MPN:
AL-30P
Unit Price (€ / pc.)
4.0698 € *
Available: 74 pcs.
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.5819 €
100 pcs.
3.1535 €
250 pcs.
3.0345 €
1000 pcs.
2.8203 €
*incl. VAT plus shipping costs
Subject to prior sale

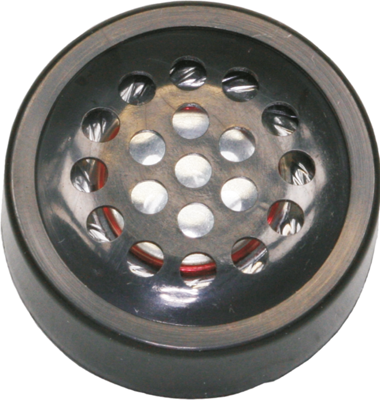

Miniature speakers, type EKULIT AL 30 P.

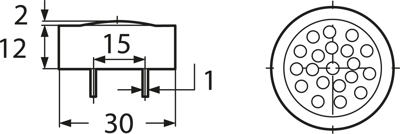

With solder pins; Grid: 15 mm. Impedance: 8.0 ±1.6 ohm. Resonant frequency: 1200 ±200 Hz. Rated load: 0.2 W. Maximum load: 0.3 W. Bandwidth: 680 to 6500 Hz. Sound pressure level: 81 ±3.0 dB. Operating temperatures: –20 to +60 °C. Dimensions: D 30 x 12 mm.
Type: AL 30 P, speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. transmission range | 680 Hz | |
| Impedance | 8 Ω | |
| Resonance frequency | 1200 Hz | |
| Sound pressure level | 81 db | |
| Colour | black | |
| Max. transmission range | 6.5 kHz | |
| Version | miniature speaker |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
