AL-23P | EKULIT
Miniature speaker, 8 Ω, 78 dB, 15 mA, 1.2 to 6.5 kHz, black, AL-23P
Order No.: 38M292
EAN: 4099891542559
MPN:
AL-23P
Unit Price (€ / pc.)
5.4383 € *
Available: 423 pcs.
Total Price:
5.44 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4383 €
10 pcs.
4.7838 €
100 pcs.
4.1888 €
250 pcs.
4.0222 €
1000 pcs.
3.7723 €
*incl. VAT plus shipping costs
Subject to prior sale

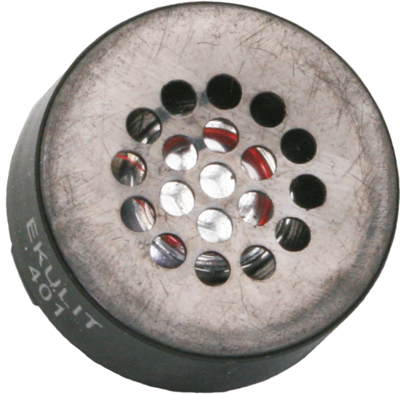

Miniature speakers, type EKULIT AL 23 P.

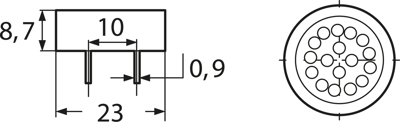

With solder pins; Grid: 10 mm. Impedance: 8.0 ±1.6 ohm. Resonant frequency: 1500 ±200 Hz. Rated load: 0.1 W. Maximum load: 0.2 W. Bandwidth: 1200 to 6500 Hz. Sound pressure level: 78 ±3.0 dB. Operating temperatures: –20 to +60 °C. Dimensions: D 23 x 8.7 mm.
Type: AL 23 P, speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 mA | |
| min. transmission range | 1.2 kHz | |
| Impedance | 8 Ω | |
| Sound pressure level | 78 db | |
| Version | miniature speaker | |
| Colour | black | |
| Max. transmission range | 6.5 kHz | |
| Resonance frequency | 1500 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
