KC002-923/271-500 | Eichhoff

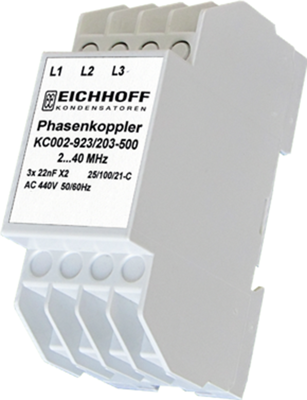

PLC phase couplers, type Eichhoff KC002-923.

For rail mounting, for the amplification of the PLC signal, optimum tuning for the frequency range from 1.0 to 40 MHz of broadband PLC systems; Rated voltage: 440 VAC. Temperature range: –25 to +100 °C. Width: 35 mm. Height: 90 mm. Mounting depth: 58 mm.

For signal coupling on all phases, with two or several residual current circuit breakers, type KC002-923/271-500.

Rated capacitance: 4 x 22 nF X2. Capacitance tolerance: ±20 %.

Type: KC002-923/271-500, PLC phase coupler,
