K005-801/047 | Eichhoff
Spark quenching capacitor, 250 V (DC), PCB connection, K005-801/047
Unit Price (€ / pc.)
5.6168 € *
Available: 67 pcs.
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6168 €
10 pcs.
4.9266 €
100 pcs.
4.3316 €
250 pcs.
4.1650 €
1000 pcs.
3.8913 €
*incl. VAT plus shipping costs
Subject to prior sale

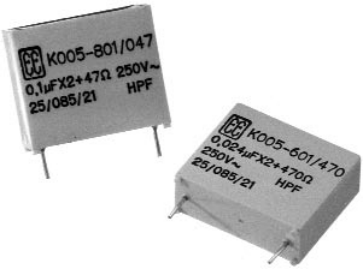

Spark quenching capacitor, type Eichhoff K005-.
Class X2 for PCB mounting, insulated can (inflammability class to IEC 60384-14/2); Rated voltage: 250 V AC/DC. Capacitance tolerance: ±20 %. IEC climate category: 25/100/21. Resistance: P40 = 1.0 W.
Technical attributes (type, rated capacity, operating temperatures): K005-801/047, 0.1 µF, 47R
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Rated voltage (DC) | 250 V | |
| Connection | PCB connection | |
| ohmic resistance | 47 Ω | |
| Capacity X|Y | 100 nF | |
| With fuse | No | |
| max. operating temperature | 125 °C | |
| Version | RC combinations |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
