K005-800/516 | Eichhoff
Spark quenching capacitor, 250 V (DC), PCB connection, K005-800/516
Unit Price (€ / pc.)
6.1999 € *
Available: 441 pcs.
Total Price:
6.20 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1999 €
10 pcs.
5.4502 €
50 pcs.
5.0813 €
150 pcs.
4.8552 €
500 pcs.
4.6053 €
*incl. VAT plus shipping costs
Subject to prior sale

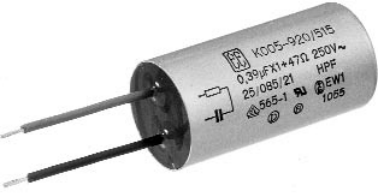

Spark quenching capacitor, type Eichhoff K005-.
With hook-up wires Package: metal can with mounting strap. Rated voltage: 250 V AC/DC. Capacitance tolerance: ±20 %. Capacitor class: X1. IEC climate category: 25/100/21. Resistance: 47 ohm. Connections: copper stranded wire H05V-K 0.5 mm².

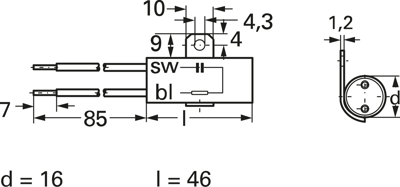

Technical attributes (type, rated capacitance, dimensions D x L): K005–800/516, 0.1 µF, 16 x 46 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Rated voltage (DC) | 250 V | |
| Connection | PCB connection | |
| ohmic resistance | 47 kΩ | |
| Capacity X|Y | 100 nF | |
| With fuse | No | |
| max. operating temperature | 125 °C | |
| Version | RC combinations |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
