F033-001/500 | Eichhoff
RFI filter, 50 to 60 Hz, 1 A, 110/250 VAC, 1 mH, faston plug 6.3 mm, F033-001/500
Unit Price (€ / pc.)
16.4934 € *
Standard delivery time from the manufacturer is: On Request

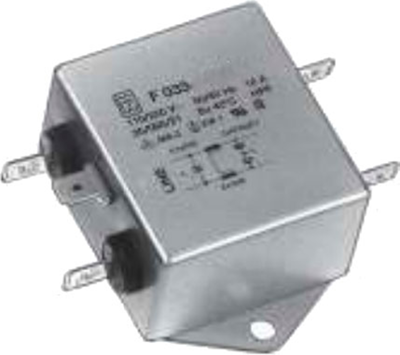

RFI Filter, F033-001/500, EICHHOFF
The F033-001/500 is a radio interference suppression filter, that ensure a reduction of conducted interference radiation and an increase in interference immunity in electronic devices and systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | RFI filter | |
| Connection | faston plug 6.3 mm | |
| min. frequency | 50 Hz | |
| With fuse | No | |
| max. frequency | 60 Hz | |
| Rated Voltage | 110/250 VAC | |
| Number of phases | 1 | |
| Capacity X|Y | X2 0.1 nF | |
| Inductance per line | 1 mH | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BG |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
