F012-401/009 | Eichhoff

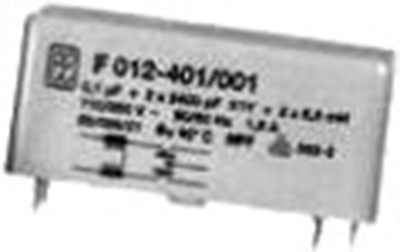

RFI filter, 50 to 60 Hz, 2 A, 110/250 VAC, 3.9 mH, solder pin, F012-401/009
Unit Price (€ / pc.)
13.0067 € *
Standard delivery time from the manufacturer is: On Request
RF suppression filters, type Eichhoff F012-.
For PCB mounting; Rated voltage: 110/250 VAC (50/60 Hz). Rated capacitance: 0.1 µF + 2 x 2400 pF X1Y2. Capacitance tolerance: ±20 %. Inductance tolerance: –30/+50 %. Climate category: 25/085/21. Connections: solder pins according to grid. Test logos: VDE.
Technical attributes (type, rated current, rated inductance): F012–401/009, 2.0 A, 2 x 3.9 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Rated Voltage | 110/250 VAC | |
| min. frequency | 50 Hz | |
| Capacity X|Y | X2 0.1 nF | |
| Rated current | 2 A | |
| Version | RFI filter | |
| Connection | solder pin | |
| max. frequency | 60 Hz | |
| Inductance per line | 3.9 mH | |
| With fuse | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
