F012-401/001 | Eichhoff

RFI filter, 50 to 60 Hz, 1.6 A, 110/250 VAC, 6.8 mH, solder pin, F012-401/001

Order No.: 73D280
EAN: 4099889077841
MPN:
F012-401/001
Series: F012

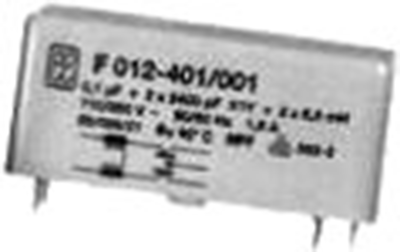

F012-401/001 Eichhoff Interference suppression filter Image 1
F012-401/001 Eichhoff Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
18.4926 € *
Available: 50 pcs.
Total Price:
18.49 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4926 €
10 pcs.
16.2792 €
50 pcs.
15.1725 €
150 pcs.
14.5061 €
500 pcs.
13.7564 €
*incl. VAT plus shipping costs
Subject to prior sale

RF suppression filters, type Eichhoff F012-.

For PCB mounting; Rated voltage: 110/250 VAC (50/60 Hz). Rated capacitance: 0.1 µF + 2 x 2400 pF X1Y2. Capacitance tolerance: ±20 %. Inductance tolerance: –30/+50 %. Climate category: 25/085/21. Connections: solder pins according to grid. Test logos: VDE.

Technical attributes (type, rated current, rated inductance): F012–401/001, 1.6 A, 2 x 6.8 mH

Technical specifications
Filter Property Value
Rated Voltage 110/250 VAC
Number of phases 1
Connection solder pin
Rated current 1.6 A
min. frequency 50 Hz
Version RFI filter
max. frequency 60 Hz
Capacity X|Y X1 0.1 µF, Y2 2x2200 pF
Inductance per line 6.8 mH
With fuse No
Logistics
Property Value
Country of origin BG
Customs tariff number 85363010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
