F012-050/000 | Eichhoff
RFI filter, 50 to 60 Hz, 2 A, 110/250 VAC, 2 mH, H05V-K 0.5, F012-050/000
Unit Price (€ / pc.)
18.8615 € *
Available: 89 pcs.
Total Price:
18.86 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8615 €
10 pcs.
16.6005 €
50 pcs.
15.4700 €
150 pcs.
14.7798 €
500 pcs.
14.0301 €
*incl. VAT plus shipping costs
Subject to prior sale

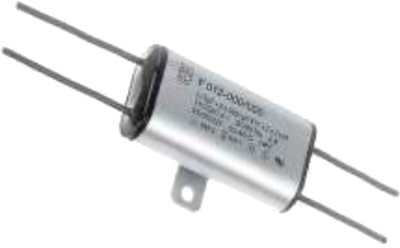

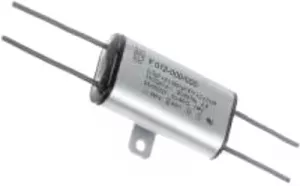

RFI Filter, F012-050/000, EICHHOFF
The F012-050/000 is a radio interference suppression filter, that ensure a reduction of conducted interference radiation and an increase in interference immunity in electronic devices and systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Inductance per line | 2 mH | |
| With fuse | No | |
| Number of phases | 1 | |
| min. frequency | 50 Hz | |
| Connection | H05V-K 0.5 | |
| Version | RFI filter | |
| Rated Voltage | 110/250 VAC | |
| Capacity X|Y | X2 240 nF | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
