F012-010/010 | Eichhoff

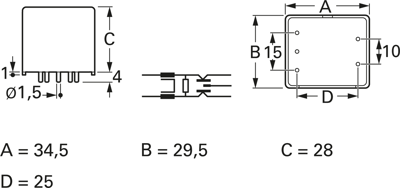

RFI filter, 50 to 60 Hz, 2 A, 110/250 VAC, 2 mH, solder pin, F012-010/010
Unit Price (€ / pc.)
15.2558 € *
Available: 78 pcs.
Total Price:
15.26 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2558 €
10 pcs.
13.4351 €
50 pcs.
12.5188 €
150 pcs.
11.9714 €
500 pcs.
11.3526 €
*incl. VAT plus shipping costs
Subject to prior sale
RFI Filter, F012-010/010, EICHHOFF
The F012-010/010 is a radio interference suppression filter, that ensure a reduction of conducted interference radiation and an increase in interference immunity in electronic devices and systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| Rated current | 2 A | |
| Inductance per line | 2 mH | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Number of phases | 1 | |
| min. frequency | 50 Hz | |
| Connection | solder pin | |
| Version | RFI filter | |
| Rated Voltage | 110/250 VAC | |
| Capacity X|Y | X2 120 nF | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
