691791.3 | EFB Elektronik
Order No.: 26P2478
EAN: 4016514048397
MPN:
691791.3
Unit Price (€ / pc.)
1,246.6202 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,246.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,246.6202 €

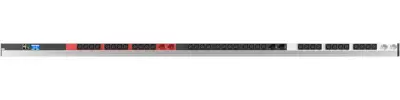

Socket strip, 691791.3, EFB Elektronik
This product features integrated function for measuring of current, voltage, reactive-, apparent-, active power, frequency and power factor. It also has an integrated temperature sensor + two interfaces for external sensors.
Features
- With integrated display, integrated web server with 10/100 Mbit/s Ethernet port (RJ45)
- Cable 3.0 m H05VV-F 5G 2.5 mm², CEE plug 16 A red
- Housing aluminium profile
- Feeding 3-phase
Technical specifications
| Can be switched off | Yes | |
| Number of sockets | 42 | |
| Cable length | 3 m | |
| Master-Slave | No | |
| Material | aluminum | |
| Rated current | 16 A | |
| Overvoltage protection | No | |
| USB connection | No |
Download
Logistics
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
