88035.2 | EFB-Elektronik
Plug, RJ45, 8 pole, Cat 8, IDC connection, 88035.2
Order No.: 26P2656
EAN: 4049759210700
MPN:
88035.2
Unit Price (€ / pc.)
11.4835 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Modular connector, 88035.2, EFB Elektronik

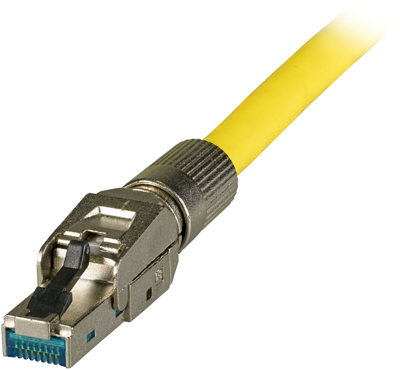

The RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. Fully shielded zinc diecast housing ensures the best EMC features especially in industrial environments. IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Pin number | 8 pole | |
| Category | Cat 8 | |
| Connection | IDC connection | |
| RJ-Version | RJ45 | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
