IADAP-USB31-DOCK2 | EFB-Elektronik

USB 3.1 Type-C Docking Station to USB3.0, with VGA, RJ45, Type-C

Order No.: 26P1067
EAN: 8051128102093
MPN:
IADAP-USB31-DOCK2
IADAP-USB31-DOCK2 EFB-Elektronik Docking Stations Image 1
IADAP-USB31-DOCK2 EFB-Elektronik Docking Stations Image 2
Image may differ
Unit Price (€ / pc.)
67.7229 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
67.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
67.7229 €

USB Type-C, IADAP-USB31-DOCK2, EFB Elektronik

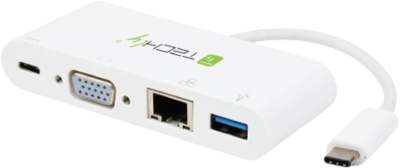

IADAP USB31-DOCK2 is a USB-C to USB 3.0 with Gigabit Ethernet, VGA and USB-C charging port hub. The USB 3.0 port allows you to connect a USB device to a host computer or another hub, the USB-C female port can charge for the host computer, VGA port allows you to connect a VGA monitor so that you can watch videos or slideshows on a big screen and the host computer can easily connect to the network through the Gigabit Ethernet port. It can work on Macbook or Google's new Chromebook Pixel and other USB-C supported devices.

Features

  • Supports resolution up to 1920 x 1200 60Hz
  • Vertical frequency 50/60Hz - Bandwidth up to 2.25Gbps/225MHz
  • Input: USB-C Male x1
  • Input: USBC-C Female x1 (for charging)
  • Output: VGA Female x1
  • Output: RJ45X1
  • Output: USB-A Female x1
Technical specifications
Filter Property Value
Colour white
Data transmission rate 5000000000 mb/s
Connection (2) USB 3.0/VGA/RJ45/USB-C
Height 17 mm
Length 95 mm
Connection (1) USB
Width 41 mm
Logistics
Property Value
Customs tariff number 85369095
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
