MK7104.100P | EFB-Elektronik

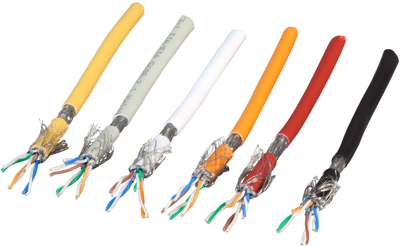

FRNC-B network cable, Cat 7, 8-wire, AWG 26-7, pink, MK7104.100P
Order No.: 26P1334
EAN: 4049759151676
MPN:
MK7104.100P
Unit Price (€ / pck.)
93.4864 € *
Standard delivery time from the manufacturer is: 5 Weeks
Network cable, MK7104.100P, EFB Elektronik
The network cable MK7104 is constructed for transmissions up to 600 MHz and exceeds with the electrical transmission properties and requirements of the category 7. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | network cable/raw cable | |
| Colour | pink | |
| Temperature range (unmoved) | 0 °C to 60 °C | |
| Number of cores | 8 | |
| Core insulation material | PE | |
| Outer diameter | 6.5 mm | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Category | Cat 7 | |
| Temperature range (active) | -20 °C to 60 °C | |
| AWG cross-section | AWG 26-7 | |
| Drag chain suitable | No | |
| Material | FRNC-B | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|

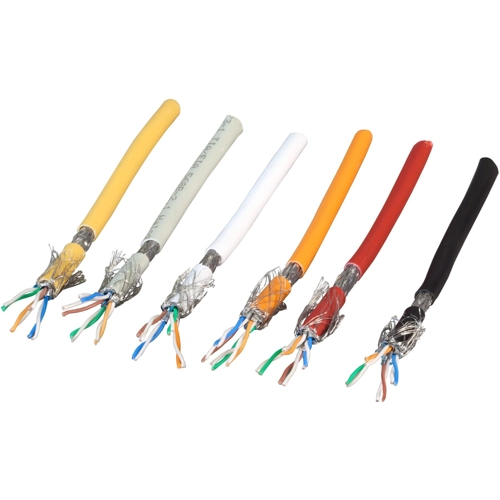

| Original Packaging | Ring with 100 meters |
| Country of origin | CN |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
