MK7104.100O | EFB-Elektronik

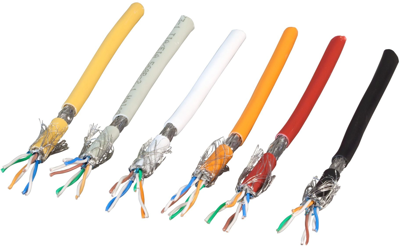

FRNC-B network cable, Cat 7, 8-wire, AWG 26-7, orange, MK7104.100O
Order No.: 26P1333
EAN: 4049759151669
MPN:
MK7104.100O
Unit Price (€ / pck.)
84.1330 € *
Standard delivery time from the manufacturer is: On Request
Network cable, MK7104.100O, EFB Elektronik
The network cable MK7104 is constructed for transmissions up to 600 MHz and exceeds with the electrical transmission properties and requirements of the category 7. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Material | FRNC-B | |
| Version | network cable/raw cable | |
| Temperature range (unmoved) | 0 °C to 60 °C | |
| Temperature range (active) | -20 °C to 60 °C | |
| Halogen free | Yes | |
| Category | Cat 7 | |
| Outer diameter | 6.5 mm | |
| AWG cross-section | AWG 26-7 | |
| Drag chain suitable | No | |
| Colour | orange | |
| Number of cores | 8 | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
