MK7104.100BR | EFB-Elektronik

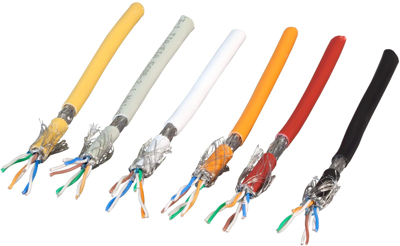

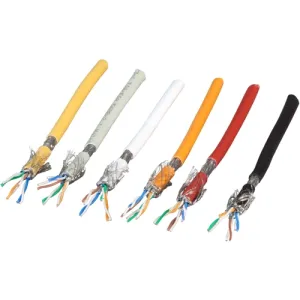

FRNC-B network cable, Cat 7, 8-wire, AWG 26-7, brown, MK7104.100BR
Order No.: 26P1330
EAN: 4049759151638
MPN:
MK7104.100BR
Unit Price (€ / pck.)
93.4864 € *
Standard delivery time from the manufacturer is: On Request
Network cable, MK7104.100BR, EFB Elektronik
The network cable MK7104 is constructed for transmissions up to 600 MHz and exceeds with the electrical transmission properties and requirements of the category 7. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Category | Cat 7 | |
| AWG cross-section | AWG 26-7 | |
| Core insulation material | PE | |
| Temperature range (active) | -20 °C to 60 °C | |
| Colour | brown | |
| Halogen free | Yes | |
| Number of cores | 8 | |
| Shielding | shielded | |
| Outer diameter | 6.5 mm | |
| Temperature range (unmoved) | 0 °C to 60 °C | |
| Material | FRNC-B | |
| Drag chain suitable | No | |
| Version | network cable/raw cable | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444920 |
| Original Packaging | Ring with 100 meters |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
