MK7101DX.100-CPR | EFB-Elektronik

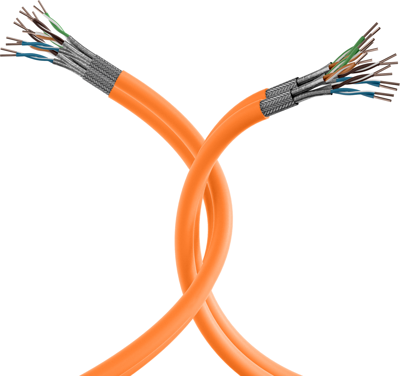

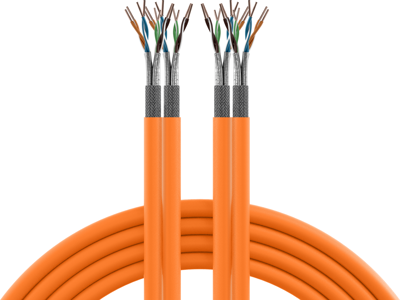

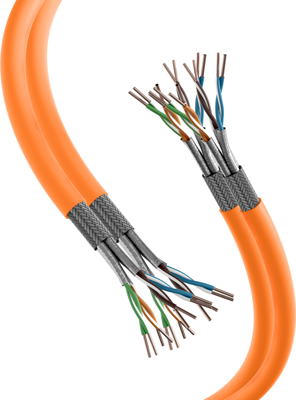

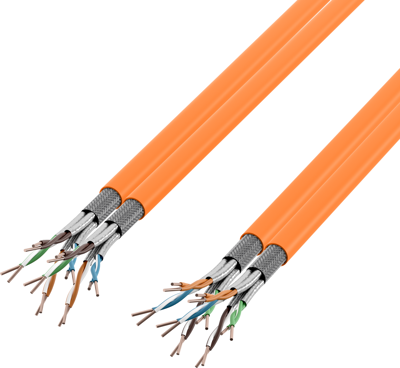

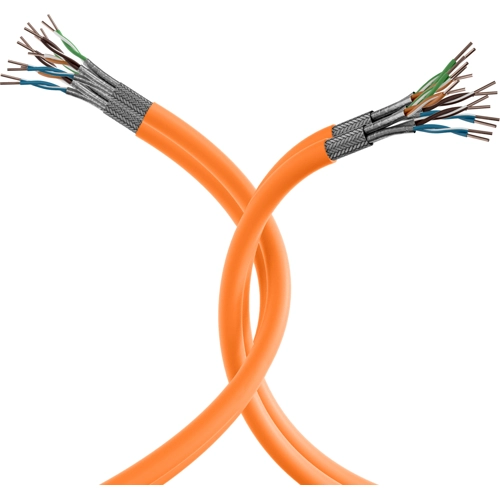

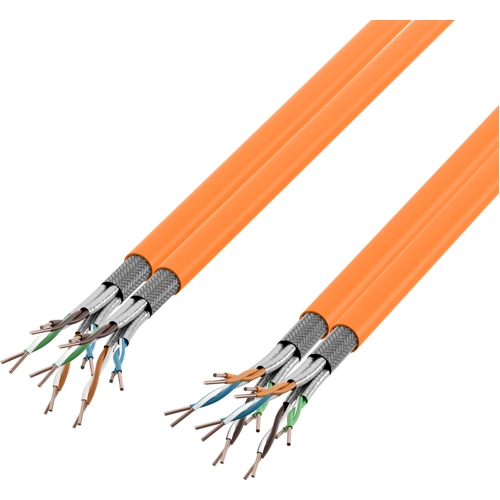

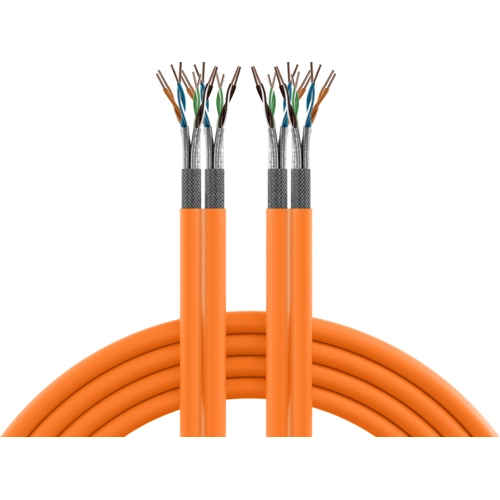

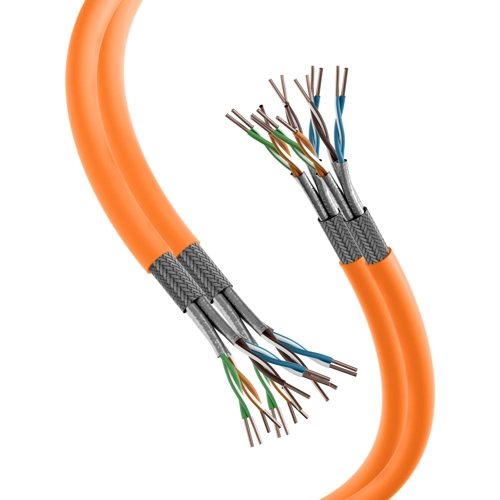

FRNC-B network cable, Cat 7, LAN, 16-wire, AWG 23, orange, MK7101DX.100-CPR
 Order No.: 26P2739
  EAN: 4049759201203
  MPN:
  MK7101DX.100-CPR
 Unit Price (€ / pck.)
   153.7718 €  *
   Available in 5 Days: 1 pck. - if ordered today
 Network cable, MK7101DX.100-CPR, EFB Elektronik
The data cable MK7101DX.100-CPR is constructed for transmissions up to 1000 MHz and exceeds with the electrical transmission properties and requirements of the category. With this cable transmission rates up to 10 Gigabit Ethernet is possible without difficulty.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Category | Cat 7 | |
| AWG cross-section | AWG 23 | |
| Core insulation material | PE | |
| Temperature range (active) | 0 °C to 50 °C | |
| Colour | orange | |
| Halogen free | Yes | |
| Number of cores | 16 | |
| Shielding | shielded | |
| Outer diameter | 15 mm | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Material | FRNC-B | |
| Bussystem | LAN | |
| Drag chain suitable | No | |
| Version | network cable | |
| Cable material | copper, tin-plated |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85444920 |
| Original Packaging | Reel with 100 meters |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
