MK7101.100-CPR | EFB-Elektronik

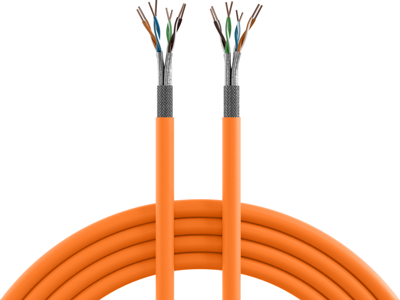

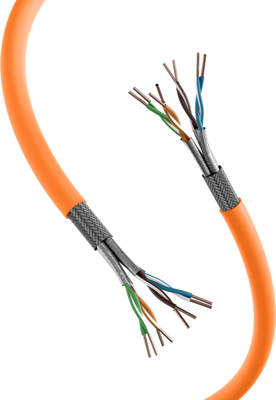

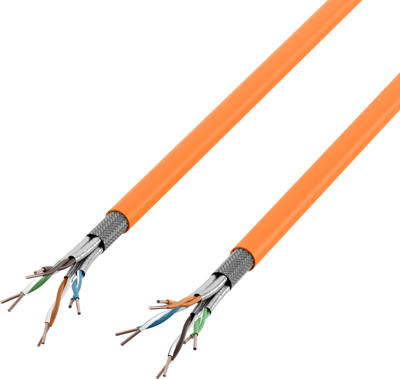

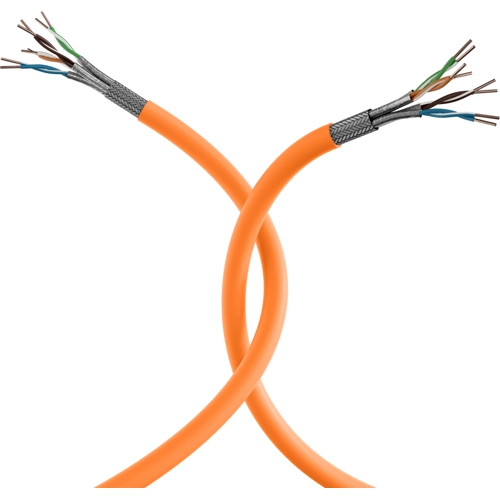

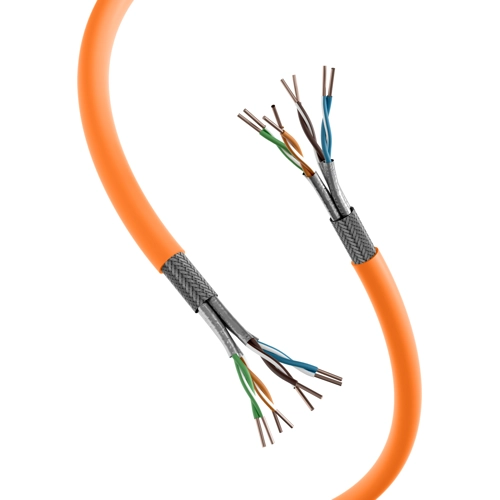

FRNC-B network cable, Cat 7, LAN, 8-wire, AWG 23, orange, MK7101.100-CPR
 Order No.: 26P2738
  EAN: 4049759201159
  MPN:
  MK7101.100-CPR
 Unit Price (€ / pck.)
   91.0588 €  *
   Standard delivery time from the manufacturer is: 5 Weeks
 Network cable, MK7101.100-CPR, EFB Elektronik
The data cable MK7101.100-CPR is constructed for transmissions up to 1000 MHz and exceeds with the electrical transmission properties and requirements of the category. With this cable transmission rates up to 10 Gigabit Ethernet is possible without difficulty.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Bussystem | LAN | |
| Material | FRNC-B | |
| AWG cross-section | AWG 23 | |
| Core insulation material | PE | |
| Drag chain suitable | No | |
| Shielding | shielded | |
| Category | Cat 7 | |
| Colour | orange | |
| Halogen free | Yes | |
| Version | network cable | |
| Temperature range (active) | 0 °C to 50 °C | |
| Outer diameter | 7.4 mm | |
| Cable material | copper, tin-plated | |
| Number of cores | 8 | |
| Temperature range (unmoved) | -20 °C to 60 °C |
 Download
  Logistics

 | Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444920 |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
