99827.100 | EFB-Elektronik

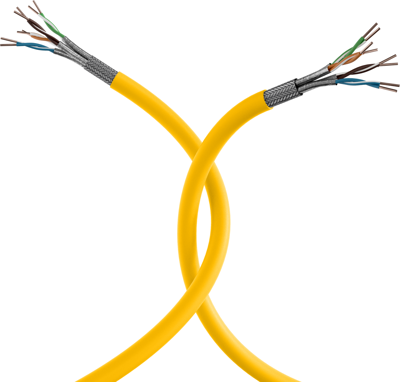

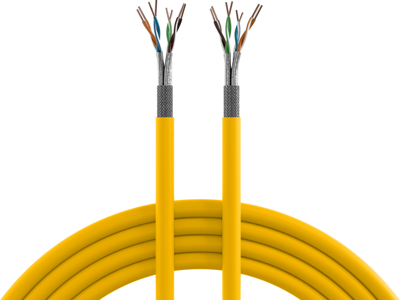

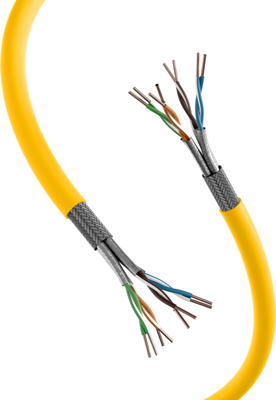

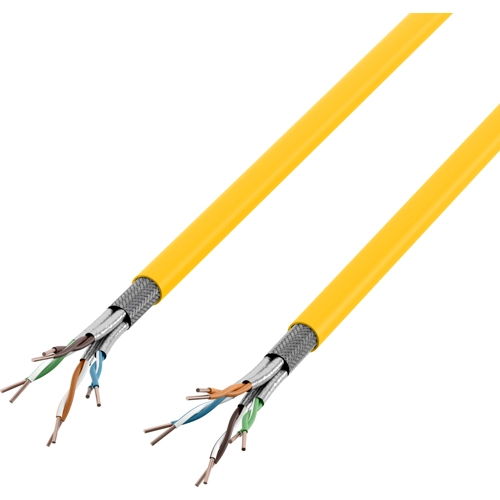

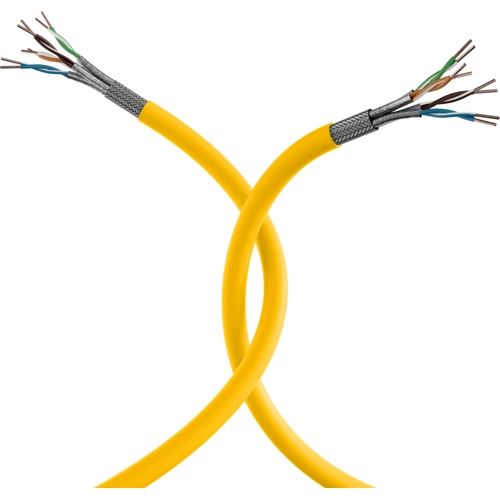

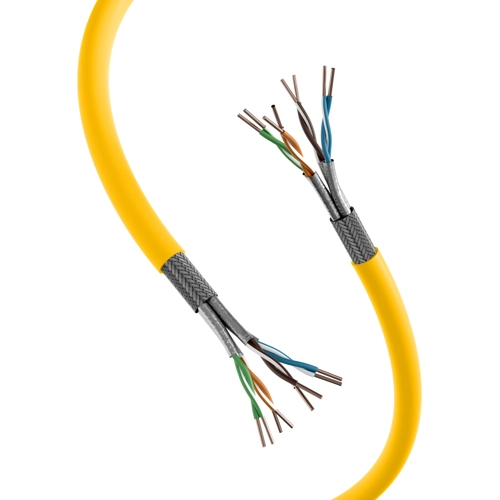

FRNC-C network cable, Cat 8.2, 8-wire, AWG 22, yellow, 99827.100
Order No.: 26P2744
EAN: 4049759264581
MPN:
99827.100
Unit Price (€ / pck.)
243.9857 € *
Standard delivery time from the manufacturer is: On Request
Network cable, 99827.100, EFB Elektronik
The installation cable 99827.100 is constructed for transmissions up to 2000 MHz and exceeds with the electrical transmission properties the requirements of the category 8 and lower. With this cable transmission rates up to 40 GBit according to IEEE 802.3 are possible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Material | FRNC-C | |
| Version | network cable | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Temperature range (active) | 0 °C to 50 °C | |
| Halogen free | Yes | |
| Category | Cat 8.2 | |
| Outer diameter | 8.5 mm | |
| AWG cross-section | AWG 22 | |
| Drag chain suitable | No | |
| Colour | yellow | |
| Number of cores | 8 | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|

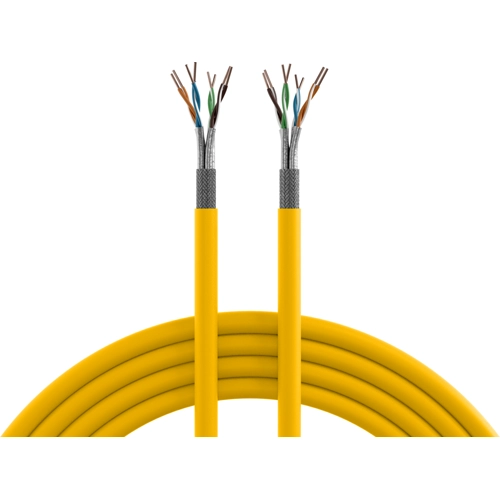

| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
