99731.100 | EFB-Elektronik

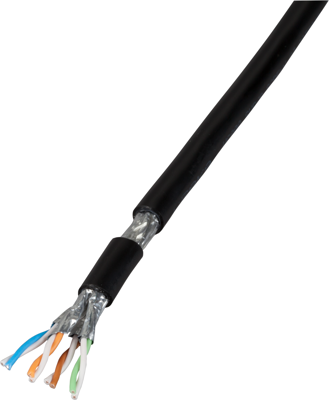

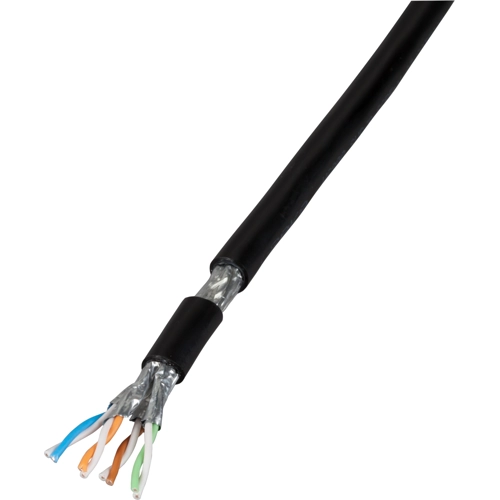

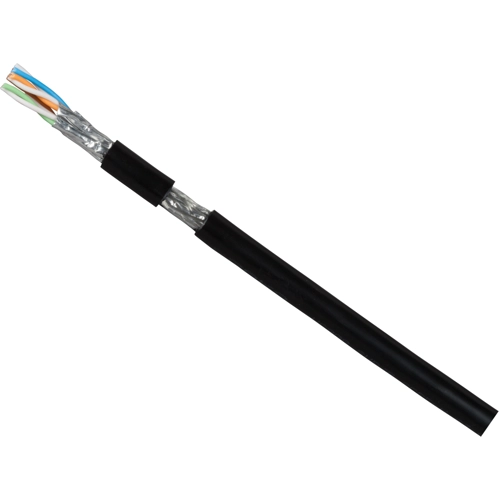

PE sheathed line, Cat 7, 8-wire, 0.26 mm², AWG 23, black, 99731.100
Order No.: 26P2788
EAN: 4049759146696
MPN:
99731.100
Unit Price (€ / pck.)
227.4804 € *
Standard delivery time from the manufacturer is: On Request
Installation cable, 99731.100, EFB Elektronik
The data cable is an installation cable with a thick-walled polyethylene outer sheath, suitable for direct burial, UV-resistant and for transmission rates up to 1000 MHz. Exeeds the electrical transmission properties and requirements of the category 7 and lower. Suitable for structured cabling of Class E, EA, F and according to ISO/IEC11801 (AMD 2:2009) resp. EN50173-1 (2009). With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Category | Cat 7 | |
| AWG cross-section | AWG 23 | |
| Core insulation material | PE | |
| Temperature range (active) | -20 °C to 50 °C | |
| Colour | black | |
| Halogen free | Yes | |
| Number of cores | 8 | |
| Shielding | shielded | |
| Outer diameter | 8.4 mm | |
| Temperature range (unmoved) | -55 °C to 60 °C | |
| Material | PE | |
| Drag chain suitable | No | |
| Version | network cable | |
| Cable material | copper, bright | |
| Cable cross-section | 0.26 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444920 |

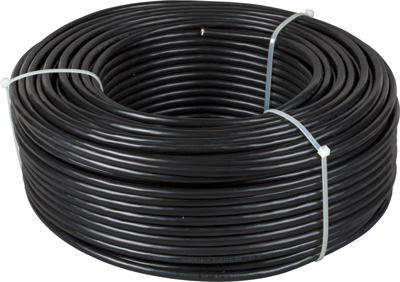

| Original Packaging | Ring with 6.93 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
