98706.100 | EFB-Elektronik

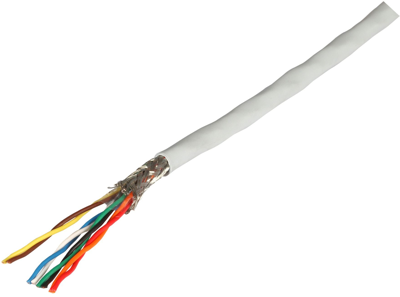

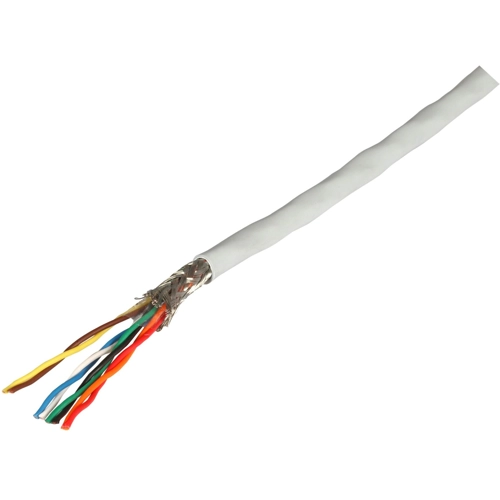

PVC network cable, Cat 5e, 8-wire, 0.16 mm², AWG 26-7, green, 98706.100
Order No.: 26P1344
EAN: 4049759074142
MPN:
98706.100
Unit Price (€ / pck.)
188.0914 € *
Standard delivery time from the manufacturer is: On Request
Network cable, 98706.100, EFB Elektronik
The 98706.100 is a Cat. 5E Patch cable with the structure tuned to a fast and reliable packing! Electrically and mechanically high-quality 300 MHz patch cords - exceeds the highest expectations. It guarantees limits according to Cat.5: ISO / IEC 11801 and EN 50173-1, EN 50288-2-2. As data jumper cable in patch panels and as cord for the transmission of digital and analogue voice, image and data signals. It is especially suitable for all applications of class D.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Core insulation material | PVC | |
| Material | PVC | |
| Version | network cable | |
| Temperature range (unmoved) | 0 °C to 50 °C | |
| Temperature range (active) | -20 °C to 60 °C | |
| Halogen free | No | |
| Category | Cat 5e | |
| Outer diameter | 5.1 mm | |
| AWG cross-section | AWG 26-7 | |
| Drag chain suitable | No | |
| Colour | green | |
| Number of cores | 8 | |
| Shielding | shielded | |
| Cable cross-section | 0.16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
