98705.100 | EFB-Elektronik
PVC network cable, Cat 5e, 8-wire, 0.16 mm², AWG 26-7, black, 98705.100
Order No.: 26P1343
EAN: 4049759074128
MPN:
98705.100
Unit Price (€ / pck.)
188.0914 € *
Standard delivery time from the manufacturer is: On Request

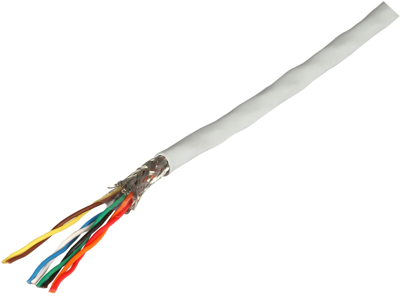

Network cable, 98705.100, EFB Elektronik
The 98705.100 is a Cat. 5E Patch cable with the structure tuned to a fast and reliable packing! Electrically and mechanically high-quality 300 MHz patch cords - exceeds the highest expectations. It guarantees limits according to Cat.5: ISO / IEC 11801 and EN 50173-1, EN 50288-2-2. As data jumper cable in patch panels and as cord for the transmission of digital and analogue voice, image and data signals. It is especially suitable for all applications of class D.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Number of cores | 8 | |
| Version | network cable | |
| AWG cross-section | AWG 26-7 | |
| Temperature range (active) | -20 °C to 60 °C | |
| Halogen free | No | |
| Category | Cat 5e | |
| Cable cross-section | 0.16 mm² | |
| Material | PVC | |
| Temperature range (unmoved) | 0 °C to 50 °C | |
| Cable material | copper, tin-plated | |
| Colour | black | |
| Outer diameter | 5.1 mm | |
| Drag chain suitable | No | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|

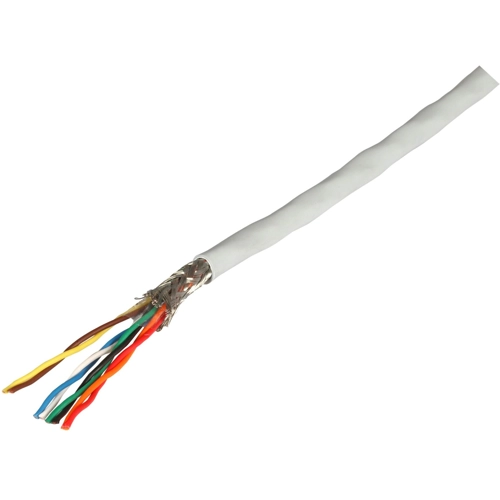

| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
