FTTH-BOX-OUT-3 | EFB-Elektronik

FTTH connection box, 4 x SC Simplex/8 x LC Duplex, (W x H x D) 172 x 136 x 40 mm, white, FTTH-BOX-OUT-3

Order No.: 26P2557
EAN: 4049759189716
MPN:
FTTH-BOX-OUT-3

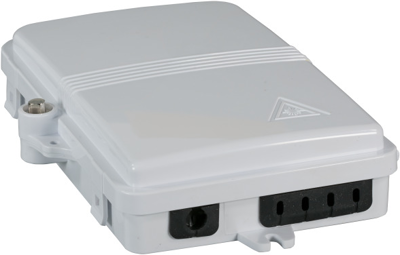

FTTH-BOX-OUT-3 EFB-Elektronik Connectin Modules, Patch Distributors Image 1

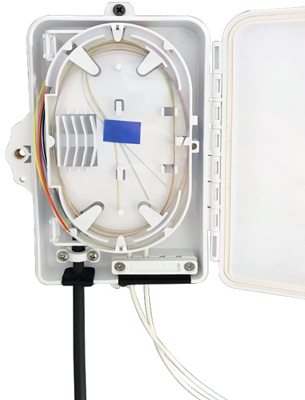

FTTH-BOX-OUT-3 EFB-Elektronik Connectin Modules, Patch Distributors Image 2

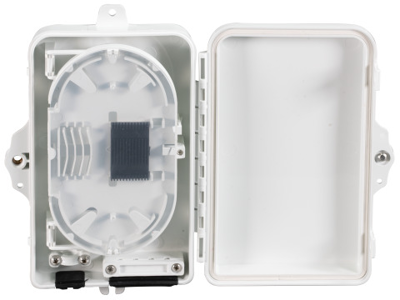

FTTH-BOX-OUT-3 EFB-Elektronik Connectin Modules, Patch Distributors Image 3

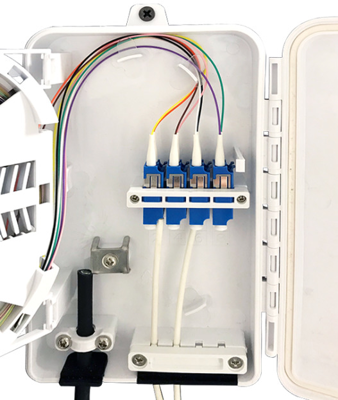

FTTH-BOX-OUT-3 EFB-Elektronik Connectin Modules, Patch Distributors Image 4

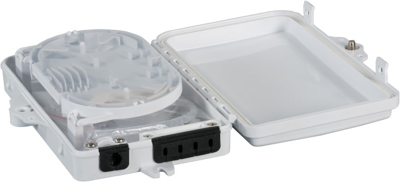

FTTH-BOX-OUT-3 EFB-Elektronik Connectin Modules, Patch Distributors Image 5
Image may differ
Unit Price (€ / pc.)
15.6723 € *
Available in 5 Days: 99 pcs. - if ordered today
Total Price:
15.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.6723 €

FTTH Connectionbox, FTTH-BOX-OUT-3, EFB Elektronik

FTTH IP65 Connectionbox for 8fiber, 4adapter and Fiber overlength box.

Applications

  • Optical telecommunication Networks
  • LAN, Optical fiber communication Network
  • CATV Networks
  • FTTH access Network
  • PON, G-PON
Technical specifications
Filter Property Value
Depth 40 mm
Connection 4 x SC Simplex/8 x LC Duplex
Colour white
Width 172 mm
Version FTTH connection box
Height 136 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85367000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
