37738SW.8 | EFB-Elektronik
Patch panel, 8 x RJ45, horizontal, 1 row, (W x H x D) 254.6 x 22 x 108 mm, black, 37738SW.8
Order No.: 26P1104
EAN: 4049759186630
MPN:
37738SW.8
Unit Price (€ / pc.)
30.1308 € *
Standard delivery time from the manufacturer is: On Request

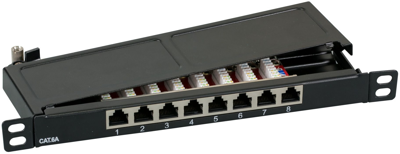

Mini patch panel, 37738SW.8, EFB Elektronik
The high quality of the shielded Cat.6A RJ45 mini patch panel ensures excellent performance for 10 Gigabit Ethernet applications. The 10" patch panel offers a high port density with 8 ports at 0.5 U. In addition, the mini patch panel is characterized by its versatile mounting options.
Features

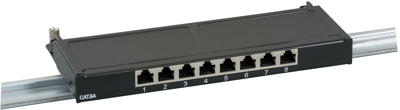

- 10 "mounting / wall mounting or DIN rail mounting possible, 1U
- 8 ports
- LSA connection strip for installation cable AWG24..AWG22
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 108 mm | |
| Connection | 8 x RJ45 | |
| Height | 22 mm | |
| Width | 254.6 mm | |
| Arrangement | horizontal, 1 row | |
| Colour | black | |
| Version | mini patchpanel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
