37738SW.12 | EFB-Elektronik
Patch panel, 12 x RJ45, horizontal, 1 row, (W x H x D) 254.6 x 22 x 108 mm, black, 37738SW.12
Order No.: 26P1102
EAN: 4049759186623
MPN:
37738SW.12
Unit Price (€ / pc.)
33.0106 € *
Available in 5 Days: 3 pcs. - if ordered today

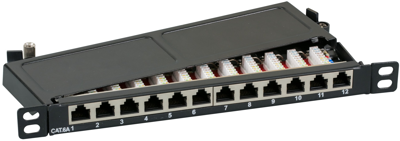

Mini patch panel, 37738SW.12, EFB Elektronik
The high quality of the shielded Cat.6A RJ45 mini patch panel ensures excellent performance for 10 Gigabit Ethernet applications. The 10" patch panel offers a high port density with 12 ports at 0.5 U. In addition, the mini patch panel is characterized by its versatile mounting options.
Features

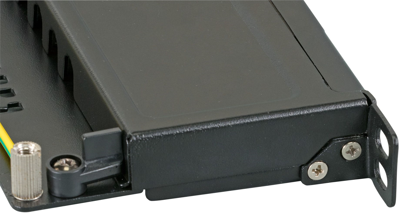

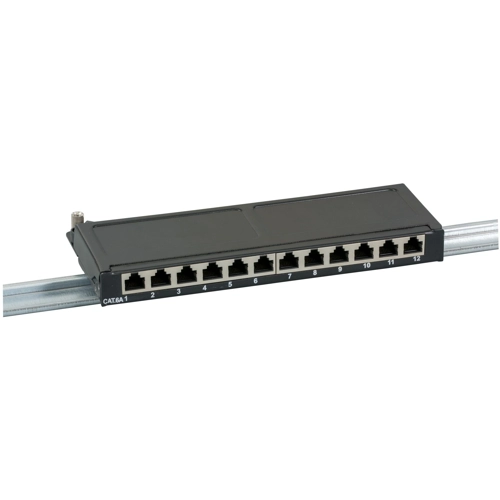

- 10 "mounting / wall mounting or DIN rail mounting possible, 1U
- 12 ports
- LSA connection strip for installation cable AWG24..AWG22
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Arrangement | horizontal, 1 row | |
| Connection | 12 x RJ45 | |
| Colour | black | |
| Width | 254.6 mm | |
| Depth | 108 mm | |
| Version | mini patchpanel | |
| Height | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
