IADAP-DSP-2124K3 | EFB-Elektronik

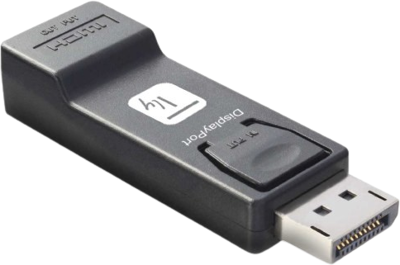

Adapter - DisplayPort 1.2 male to HDMI female, 4K 30Hz
Order No.: 26P1047
EAN: 8051128109337
MPN:
IADAP-DSP-2124K3
Unit Price (€ / pc.)
10.2935 € *
Standard delivery time from the manufacturer is: 4 Weeks
Adapter, IADAP-DSP-2124K3, EFB Elektronik
The IADAP-DSP-2124K3 adapter is a converter from DisplayPort 1.2 to HDMI signal. It allows to connect HDMI devices to the DP output of your computer, notebook or Mac with UHD quality.
Features
- Supports DisplayPort1.2
- AC coupling capable of moving the level
- Supports DisplayPort 1.2a input and HDMI1.4b output
- Supports 4K X 2K and 3D video formats over HDMI
- Compliant with HDMI 1.4b specifications up to 3.0 Gbps
- Supports 1080p deep color 10/12 bit up to 2.25 Gbps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection (1) | DisplayPort 1.2 | |
| Width | 22.5 mm | |
| Length | 58.6 mm | |
| Height | 14 mm | |
| Connection (2) | HDMI socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
