QG 030 - 353/12 | ebm-papst
DC-tangential blowers, 12 V, 155 m³/h, QG 030
Unit Price (€ / pc.)
111.6934 € *
Available: 50 pcs.

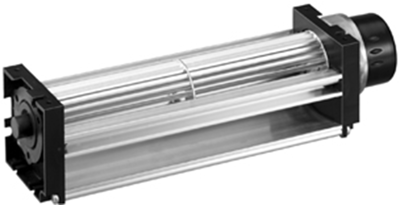

DC tangential blower, QG 030 - 353/12, ebm-papst
The QG 030 - 353/12 is a tangential blower with high air flow rate, electronically commutated external rotor motor with ball bearing system and integrated electronic commutation system, polarity reversal/blockage and overload protection. Impeller bracket with friction bearing, impeller and fan housing made of aluminum, housing side parts made of plastic.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 12 V | |
| Width | 415.4 mm | |
| Height | 47.5 mm | |
| Depth | 50 mm | |
| Volume flow | 155 m³/h | |
| Sound pressure level | 51 db | |
| speed | 3600 1/min | |
| Type of bearing | ball bearing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
