RLF 35-8/14 N | ebm-papst

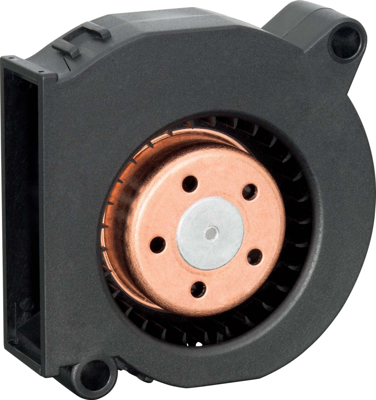

DC radial fan, 24 V, 51 x 51 x 15 mm, 9.6 m³/h, 55 dB, ball bearing, ebm-papst RLF 35-8/14 N
Order No.: 90B1981
EAN: 4099889484656
MPN:
RLF 35-8/14 N
9591904101
No longer available from manufacturer
Unit Price (€ / pc.)
49.0518 € *
Available: 157 pcs.
Total Price:
49.05 € *
Price list
Quantity
Price per unit*
1 pcs.
49.0518 €
5 pcs.
46.1006 €
15 pcs.
44.3394 €
50 pcs.
42.3759 €
150 pcs.
40.6147 €
*incl. VAT plus shipping costs
Subject to prior sale
DC radial fan, RLF 35-8/14 N, ebm-papst
The RLF 35-8/14 N is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward curved blades
- Compact design due to external rotor motor technology
- Heating and Ventilation, Lighting
- Electronic blocking protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| speed | 7200 1/min | |
| Volume flow | 9.6 m³/h | |
| Rated voltage | 24 V | |
| Type of bearing | ball bearing | |
| Width | 51 mm | |
| Height | 51 mm | |
| Depth | 15 mm | |
| Sound pressure level | 55 db |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145935 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
