RLF 100-11/12 | ebm-papst
DC radial fan, 12 V, 127 x 127 x 25 mm, 64 m³/h, 64 dB, ball bearing, ebm-papst RLF 100-11/12
Order No.: 90B1982
EAN: 4099889484663
MPN:
RLF 100-11/12
9593507051
Unit Price (€ / pc.)
71.1739 € *
Standard delivery time from the manufacturer is: 6 Weeks

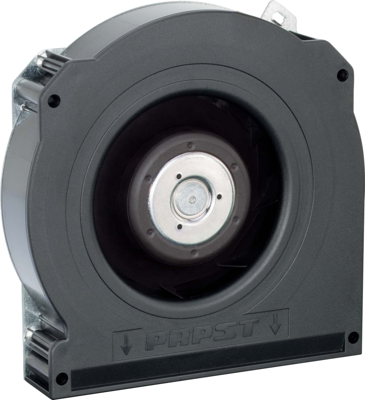

DC radial fan, RLF 100-11/12, ebm-papst
The RLF 100-11/12 is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward curved blades
- Highly adaptable software configuration of the fan enables a tailor-made
- Scroll housing made of glass-fiber reinforced plastic, housing base made of galvanized
- Electronic blocking and overload protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| speed | 5100 1/min | |
| Volume flow | 64 m³/h | |
| Rated voltage | 12 V | |
| Type of bearing | ball bearing | |
| Width | 127 mm | |
| Height | 127 mm | |
| Depth | 25 mm | |
| Sound pressure level | 64 db |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145935 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
