RL 90-18/50 | ebm-papst
AC radial fan, 230 V, 121 x 121 x 37 mm, 40 m³/h, 56 dB, slide bearing, ebm-papst RL 90-18/50
Unit Price (€ / pc.)
53.3358 € *
Available: 8 pcs.
Total Price:
53.34 € *
Price list
Quantity
Price per unit*
1 pcs.
53.3358 €
10 pcs.
49.5992 €
*incl. VAT plus shipping costs
Subject to prior sale

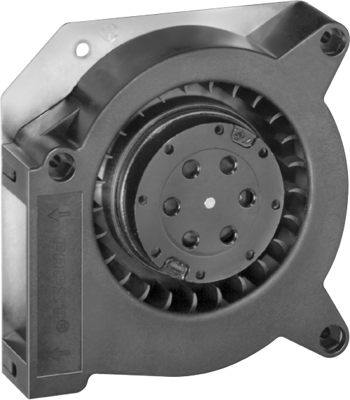

AC radial fan, RL 90-18/50, ebm-papst
The RL 90-18/50 is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward-curved blades
- 100% speed control via analog or serial interface
- Protected from overload by impedance protection
- Scroll housing made of glass-fiber reinforced PBT plastic, housing base made of sheet steel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 37 mm | |
| Height | 121 mm | |
| Sound pressure level | 56 db | |
| Type of bearing | slide bearing | |
| speed | 2450 1/min | |
| Volume flow | 40 m³/h | |
| Width | 121 mm | |
| Rated voltage | 230 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145995 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
