RL 90-18/14 N | ebm-papst

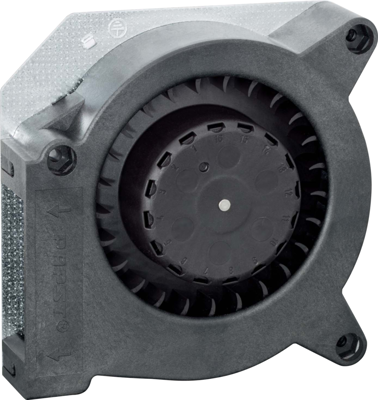

DC radial fan, 24 V, 121 x 121 x 37 mm, 40 m³/h, 58 dB, ball bearing, ebm-papst RL 90-18/14 N
Order No.: 90B1978
EAN: 4099889484625
MPN:
RL 90-18/14 N
9594310400
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
69.6983 € *
Standard delivery time from the manufacturer is: 8 Weeks
DC radial fan, RL 90-18/14 N, ebm-papst
The RL 90-18/14 N is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward curved blades
- AC and EC low-pressure fan
- Compact design thanks to external rotor motor technology
- Protection against reverse polarity and blocked rotor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 24 V | |
| Width | 121 mm | |
| Height | 121 mm | |
| Depth | 37 mm | |
| Volume flow | 40 m³/h | |
| Sound pressure level | 58 db | |
| speed | 2500 1/min | |
| Type of bearing | ball bearing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145935 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
