RL 90-18/12 N | ebm-papst

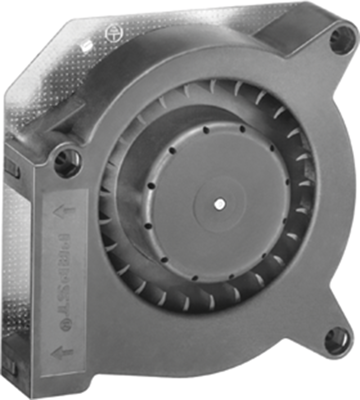

DC radial fan, 12 V, 121 x 121 x 37 mm, 40 m³/h, 58 dB, ball bearing, ebm-papst RL 90-18/12 N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
104.2440 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
104.24 € *
Price list
Quantity
Price per unit*
1 pcs.
104.2440 €
5 pcs.
97.9965 €
*incl. VAT plus shipping costs
Subject to prior sale
DC radial fan, RL 90-18/12 N, ebm-papst
The RL 90-18/12 N is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward-curved blades
- Compact design thanks to external rotor motor technology
- Comprehensive product ranges for every application
- 100% speed control via analog or serial interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 12 V | |
| Width | 121 mm | |
| Height | 121 mm | |
| Depth | 37 mm | |
| Volume flow | 40 m³/h | |
| Sound pressure level | 58 db | |
| speed | 2500 1/min | |
| Type of bearing | ball bearing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84145995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
