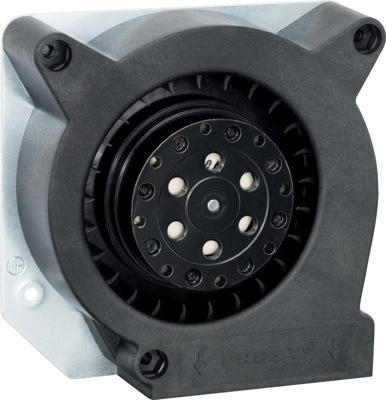

RL 90-18/06 | ebm-papst
AC radial fan, 115 V, 121 x 121 x 37 mm, 42 m³/h, 60 dB, ball bearing, ebm-papst RL 90-18/06
Order No.: 90B1860
EAN: 4099889484533
MPN:
RL 90-18/06
9214014021
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
58.4766 € *
Standard delivery time from the manufacturer is: 18 Weeks
AC centrifugal fan, RL 90-18/06, ebm-papst
The RL 90-18/06 is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC centrifugal fan with external rotor shaded pole motor
- Compact design due to external rotor motor technology
- Spiral housing made of glass fiber reinforced plastic
- Protected from overload using impedance protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 115 V | |
| Width | 121 mm | |
| Height | 121 mm | |
| Depth | 37 mm | |
| Volume flow | 42 m³/h | |
| Sound pressure level | 60 db | |
| speed | 2450 1/min | |
| Type of bearing | ball bearing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145935 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
