RL 65-21/14H | ebm-papst
DC radial fan, 24 V, 97 x 93.5 x 33 mm, 61 m³/h, 68 dB, ball bearing, ebm-papst RL 65-21/14H
Order No.: 90B1976
EAN: 4099889484601
MPN:
RL 65-21/14H
9592910005
Unit Price (€ / pc.)
76.8740 € *
Available: 10 pcs.
Total Price:
76.87 € *
Price list
Quantity
Price per unit*
1 pcs.
76.8740 €
5 pcs.
72.2568 €
15 pcs.
69.4960 €
50 pcs.
66.4139 €
150 pcs.
63.6531 €
*incl. VAT plus shipping costs
Subject to prior sale

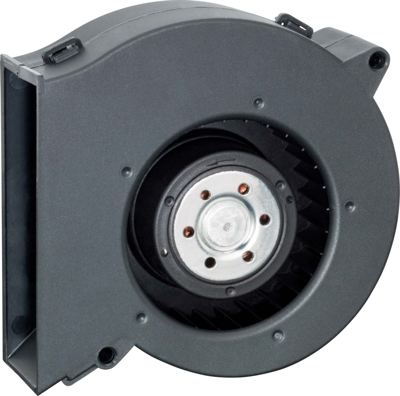

DC radial fan, RL 65-21/14H, ebm-papst
The RL 65-21/14H is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward curved blades
- 100 % speed controllable via analog or serial interface
- Spiral housing made of glass fiber reinforced plastic
- Protection against reverse polarity and blocked rotor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 97 mm | |
| Volume flow | 61 m³/h | |
| Type of bearing | ball bearing | |
| speed | 4900 1/min | |
| Rated voltage | 24 V | |
| Height | 93.5 mm | |
| Sound pressure level | 68 db | |
| Depth | 33 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145935 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
