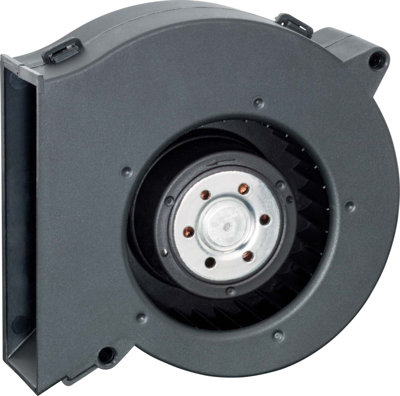

RL 65-21/12 | ebm-papst
DC radial fan, 12 V, 97 x 93.5 x 33 mm, 56 m³/h, 66 dB, ball bearing, ebm-papst RL 65-21/12
Order No.: 90B1973
EAN: 4099889484571
MPN:
RL 65-21/12
9592910001
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
36.2355 € *
Standard delivery time from the manufacturer is: 6 Weeks
DC radial fan, RL 65-21/12, ebm-papst
The RL 65-21/12 is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward curved blades
- 100 % speed controllable via analog or serial interface
- Quiet operation due to optimized flow guidance and sophisticated commutation of the EC motor
- Electronic blocking protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 12 V | |
| Width | 97 mm | |
| Height | 93.5 mm | |
| Depth | 33 mm | |
| Volume flow | 56 m³/h | |
| Sound pressure level | 66 db | |
| speed | 4500 1/min | |
| Type of bearing | ball bearing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145935 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
