RG 90-18/56 | ebm-papst
AC radial fan, 230 V, 135 x 135 x 38 mm, 54 m³/h, 58 dB, ball bearing, ebm-papst RG 90-18/56
Order No.: 90B1665
EAN: 4099889484502
MPN:
RG 90-18/56
9544014001
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
77.5404 € *
Available: 4 pcs.
Total Price:
77.54 € *
Price list
Quantity
Price per unit*
1 pcs.
77.5404 €
2 pcs.
75.2080 €
5 pcs.
72.1140 €
10 pcs.
66.1045 €
*incl. VAT plus shipping costs
Subject to prior sale

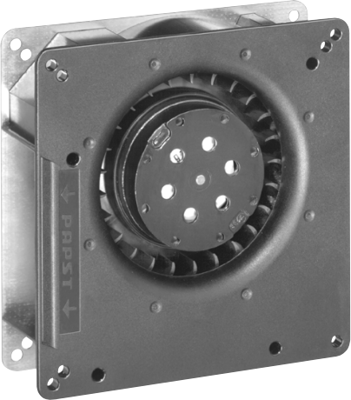

AC radial fan, RG 90-18/56, ebm-papst
The RG 90-18/56 is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC centrifugal fan with external rotor shaded-pole motor
- Compact design thanks to external rotor motor technology
- 100% speed control via analog or serial interface
- Spiral housing and impeller of fibreglass-reinforced plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 230 V | |
| Width | 135 mm | |
| Height | 135 mm | |
| Depth | 38 mm | |
| Volume flow | 54 m³/h | |
| Sound pressure level | 58 db | |
| speed | 2200 1/min | |
| Type of bearing | ball bearing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84145995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
