RG 125-19/56 | ebm-papst

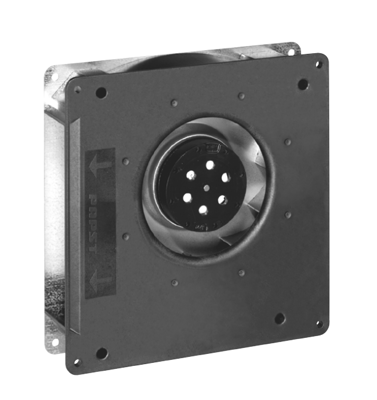

AC radial fan, 230 V, 180 x 180 x 40 mm, 86 m³/h, 58 dB, ball bearing, ebm-papst RG 125-19/56
Order No.: 90B1670
EAN: 4099889484519
MPN:
RG 125-19/56
Unit Price (€ / pc.)
73.9347 € *
Next delivery: 18 pcs. on 2026-06-05
Total Price:
73.93 € *
Price list
Quantity
Price per unit*
1 pcs.
73.9347 €
2 pcs.
72.9113 €
5 pcs.
69.9958 €
*incl. VAT plus shipping costs
Subject to prior sale
AC radial fan, RG 125-19/56, ebm-papst
The RG 125-19/56 is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC centrifugal fan with external rotor shaded-pole motor.
- 100% speed control via analog or serial interface
- High efficiency through the use of GreenTech EC technology
- Spiral housing and impeller of fibreglass-reinforced plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 230 V | |
| Width | 180 mm | |
| Height | 180 mm | |
| Depth | 40 mm | |
| Volume flow | 86 m³/h | |
| Sound pressure level | 58 db | |
| speed | 2550 1/min | |
| Type of bearing | ball bearing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145935 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
