RG 125-19/14 N | ebm-papst
DC radial fan, 24 V, 180 x 180 x 40 mm, 87.5 m³/h, 58 dB, ball bearing, ebm-papst RG 125-19/14 N
Order No.: 90B197
EAN: 4099889484540
MPN:
RG 125-19/14 N
9594310120
Unit Price (€ / pc.)
150.6778 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
150.68 € *
Price list
Quantity
Price per unit*
1 pcs.
150.6778 €
3 pcs.
146.1677 €
10 pcs.
141.1340 €
25 pcs.
137.3736 €
*incl. VAT plus shipping costs
Subject to prior sale

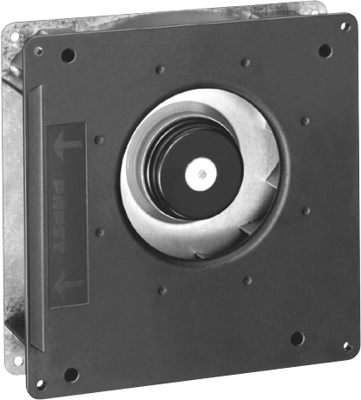

DC centrifugal fan, RG 125-19/14 N, ebm-papst
The RG 125-19/14 N is available with forward and backward-curved blades. The quiet-running centrifugal fan with forward-curved blades are also supplied with a scroll housing. The centrifugal fan with backward-curved blades are designed as freewheel fan and do not require a scroll housing.
Features
- AC and EC centrifugal fan with forward curved blades
- Highly flexible software configuration for the fan ensures an easily customisable solution to meet the individual requirements of your application
- Scroll housing and impeller made of glass-fiber reinforced plastic and a housing base made of sheet steel
- Blocking and overload protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 180 mm | |
| Volume flow | 87.5 m³/h | |
| Type of bearing | ball bearing | |
| speed | 2550 1/min | |
| Rated voltage | 24 V | |
| Height | 180 mm | |
| Sound pressure level | 58 db | |
| Depth | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145935 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
