8506 N | ebm-papst

AC axial fan, 115 V, 80 x 80 x 38 mm, 61 m³/h, 35 dB, ball bearing, ebm-papst 8506 N

Order No.: 90B1161
EAN: 4099889480801
MPN:
8506 N
9274014209
Series: 8000 N

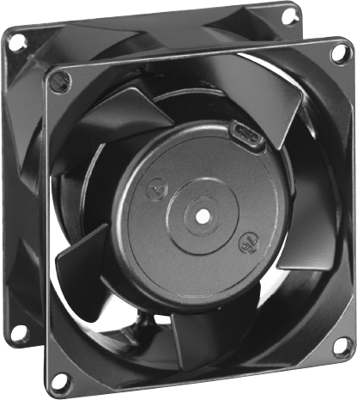

8506 N ebm-papst Axial Fans Image 1

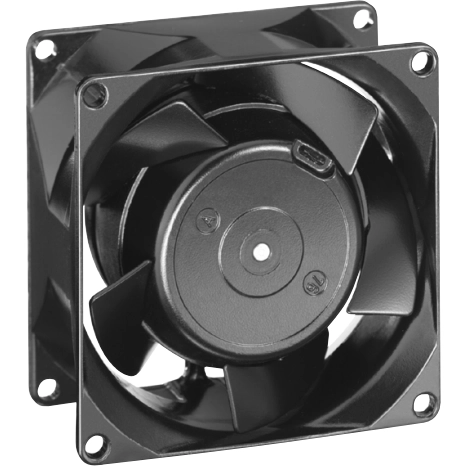

8506 N ebm-papst Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
80.8724 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
80.87 € *
Price list
Quantity
Price per unit*
1 pcs.
80.8724 €
5 pcs.
76.0172 €
*incl. VAT plus shipping costs
Subject to prior sale

AC Axial fan, 8506 N, EBM-PAPST

The 8506 N axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.

Features

  • Connection cable Via 2 single strands AWG 22
  • Protected against overload by impedance protection
  • Direction of rotation right, viewed on the rotor
  • Material housing: metal

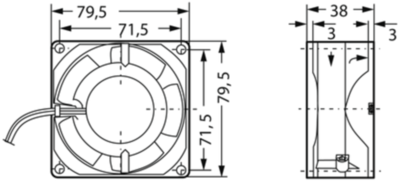

Technical specifications
Version AC axial fan
Rated voltage 115 V
Width 80 mm
Height 80 mm
Depth 38 mm
Volume flow 61 m³/h
Sound pressure level 35 db
speed 3300 1/min
Type of bearing ball bearing
Power consumption 11 W
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
