8500 N | ebm-papst

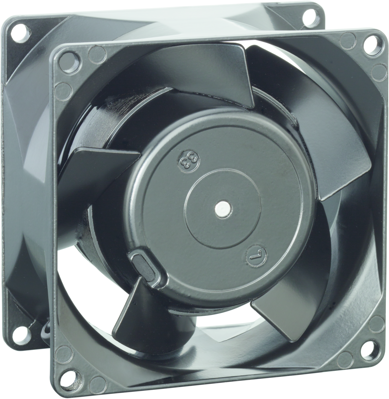

AC axial fan, 115 V, 80 x 80 x 38 mm, 61 m³/h, 34 dB, sintec slide bearing, ebm-papst 8500 N

Order No.: 90B116
EAN: 4099889480788
MPN:
8500 N
9274014207
Series: 8000 N
8500 N ebm-papst Axial Fans
Image may differ
Unit Price (€ / pc.)
69.3056 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
69.31 € *
Price list
Quantity
Price per unit*
1 pcs.
69.3056 €
5 pcs.
65.1406 €
15 pcs.
62.6416 €
50 pcs.
59.8808 €
150 pcs.
57.3818 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC Axial fan, 8500 N, EBM-PAPST

The 8500 N axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.

Features

  • Connection cable via 2 single strands AWG 18
  • Protected against overload by impedance protection
  • Direction of rotation right, viewed on the rotor
  • Material housing: metal
Technical specifications
Version AC axial fan
Rated voltage 115 V
Width 80 mm
Height 80 mm
Depth 38 mm
Volume flow 61 m³/h
Sound pressure level 34 db
speed 3200 1/min
Type of bearing sintec slide bearing
Power consumption 11 W
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
