8412 NGLE | ebm-papst

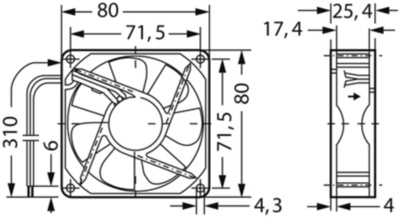

DC axial fan, 12 V, 80 x 80 x 25 mm, 33 m³/h, 12 dB, slide bearing, ebm-papst 8412 NGLE
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
20.0277 € *
Available: 492 pcs.
Total Price:
20.03 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0277 €
10 pcs.
19.1114 €
25 pcs.
18.2903 €
50 pcs.
17.2788 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 8412 NGLE, EBM-PAPST
The 8412 NGLE axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Cable connection is with single strands AWG 24 and is stripped and tinned
- Direction of rotation left, viewed on the rotor
- Protected against reverse polarity and blocking
- Electronic commutation completely integrated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 80 mm | |
| Height | 80 mm | |
| Depth | 25 mm | |
| Volume flow | 33 m³/h | |
| Sound pressure level | 12 db | |
| speed | 1500 1/min | |
| Type of bearing | slide bearing | |
| Power consumption | 0.45 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
